xTool SafetyPro™
AP2 & AP2 Max
Unrivaled dust and odor removal, engineered for all laser users
Which One Suits You Better?
Which One Suits You Better?
Which One Suits You Better?
Which One Suits You Better?

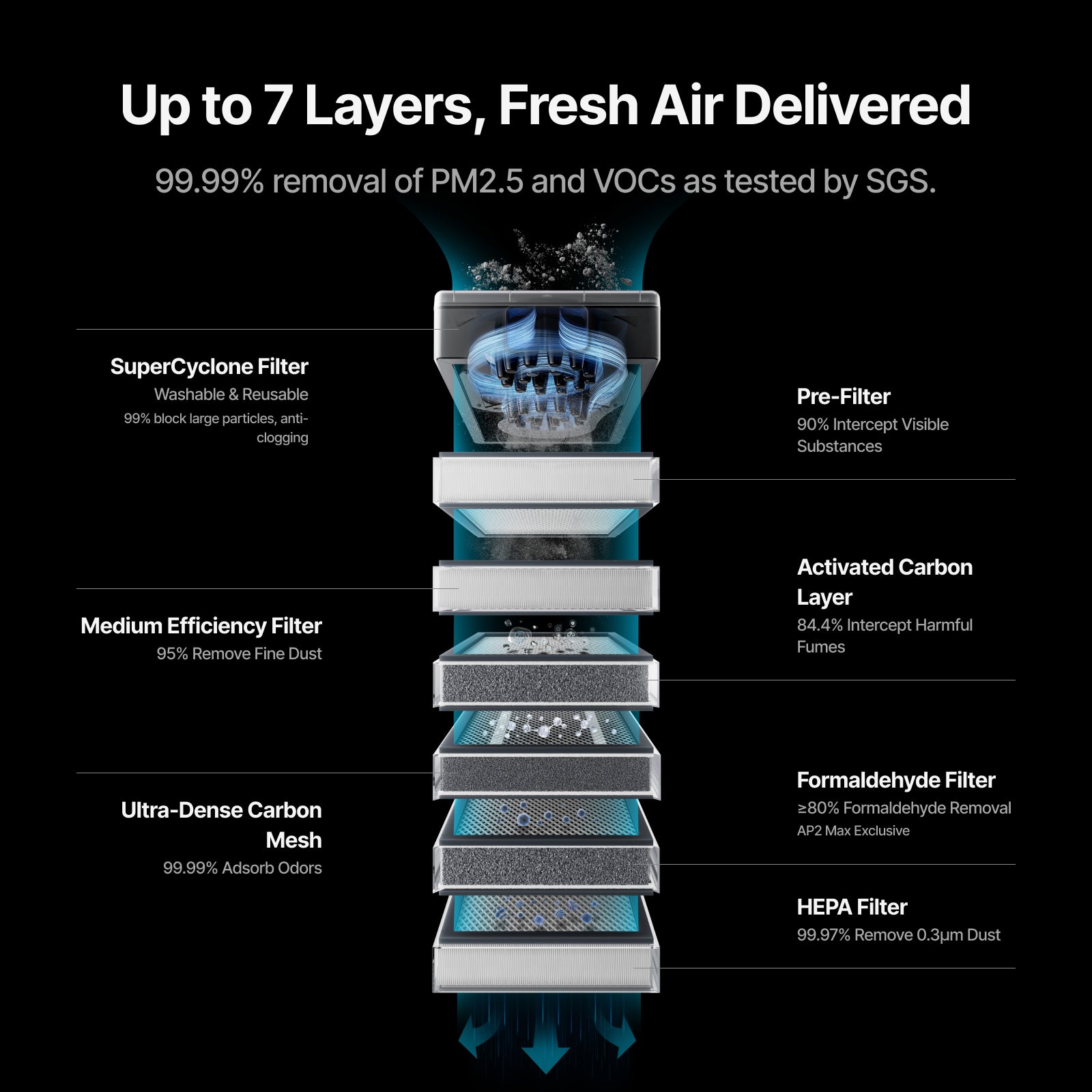

High-Density Filtration, Layer by Layer, Total Peace of Mind
High-Density Filtration, Layer by Layer, Total Peace of Mind
High-Density Filtration, Layer by Layer, Total Peace of Mind
High-Density Filtration, Layer by Layer, Total Peace of Mind
Authority Tested,
Pure Air Guaranteed
SGS approved, setting a new standard for laser purifiers, enjoying fresh air anytime.
99.99
%PM2.5 Removal
99.97
%0.3µm Dust Removal
Odor-free
cutting acrylic
99.99
%TVOC Removal
99.9
%Toluene Removal
Discover the Testing Details
Authority Tested,
Pure Air Guaranteed
SGS approved, setting a new standard for laser purifiers, enjoying fresh air anytime.
99.99
%PM2.5 Removal
99.97
%0.3µm Dust Removal
Odor-free
cutting acrylic
99.99
%TVOC Removal
99.9
%Toluene Removal
Discover the Testing Details
Five Official Tests, All Verified by SGS
Five Official Tests, All Verified by SGS
Five Official Tests, All Verified by SGS
Five Official Tests, All Verified by SGS
Test Method:
Tested in a closed space, 15-minute continuous acrylic cutting. Six professional scent assessors rated the air before and after using the purifier, Without the purifier, the rating was 3.5 (noticeable odor). With the purifier, the rating dropped to 0 (no odor).
Odor-free
cutting acrylic
*Certification provided by SGS-CSTC Standards Technical Services Co., Ltd.,
Report No. - SHFT241000046472
Test Method:
Tested with A2 dust to evaluate single-pass efficiency for 0.1–2.5 µm and 0.1–10 µm particles, achieving 99.99% PM2.5 removal.
99.99
%PM2.5 Removal
*Certification provided by SGS-CSTC Standards Technical Services Co., Ltd.,
Report No. - SHFT241000046172.
Test Method:
Initial fractional efficiency of a filter per EN ISO 29463-5:2018 including MPPS determination, and additional measure efficiency at 0.3μm.
99.97
%0.3µm Dust Removal
*Certification provided by SGS-CSTC Standards Technical Services Co., Ltd.,
Report No. - SHFT240900044273.
Test Method:
Single-pass TVOC removal efficiency, with continuous monitoring of TVOC concentration after 30 minutes of filtration.
99.99
%TVOC Removal
*Certification provided by SGS-CSTC Standards Technical Services Co., Ltd.,
Report No. - SHFT241000046472
Test Method:
Single-pass toluene removal efficiency, with continuous monitoring of toluene concentration after 30 minutes of filtration.
99.9
%Toluene Removal
*Certification provided by SGS-CSTC Standards Technical Services Co., Ltd.,
Report No. - SHFT241000046472
SuperCyclone Separation Technology
The Best Solution for Dust Collection
The Best Solution for Dust Collection
SuperCyclone Separation Technology
The Best Solution for Dust Collection
The Best Solution for Dust Collection
99% Capture Large Particles
99% Capture Large Particles
99% Capture Large Particles
99% Capture Large Particles
With a cyclone in place, all large particles can be separated, extending the lifespan of filters up to 10 times compared to those without a cyclone.
It is easy to clean and reuse. Simply wash it to keep the cyclone working like new, saving you the cost of replacing pre-filters.
With a cyclone in place, all large particles can be separated, extending the lifespan of filters up to 10 times compared to those without a cyclone.
It is easy to clean and reuse. Simply wash it to keep the cyclone working like new, saving you the cost of replacing pre-filters.

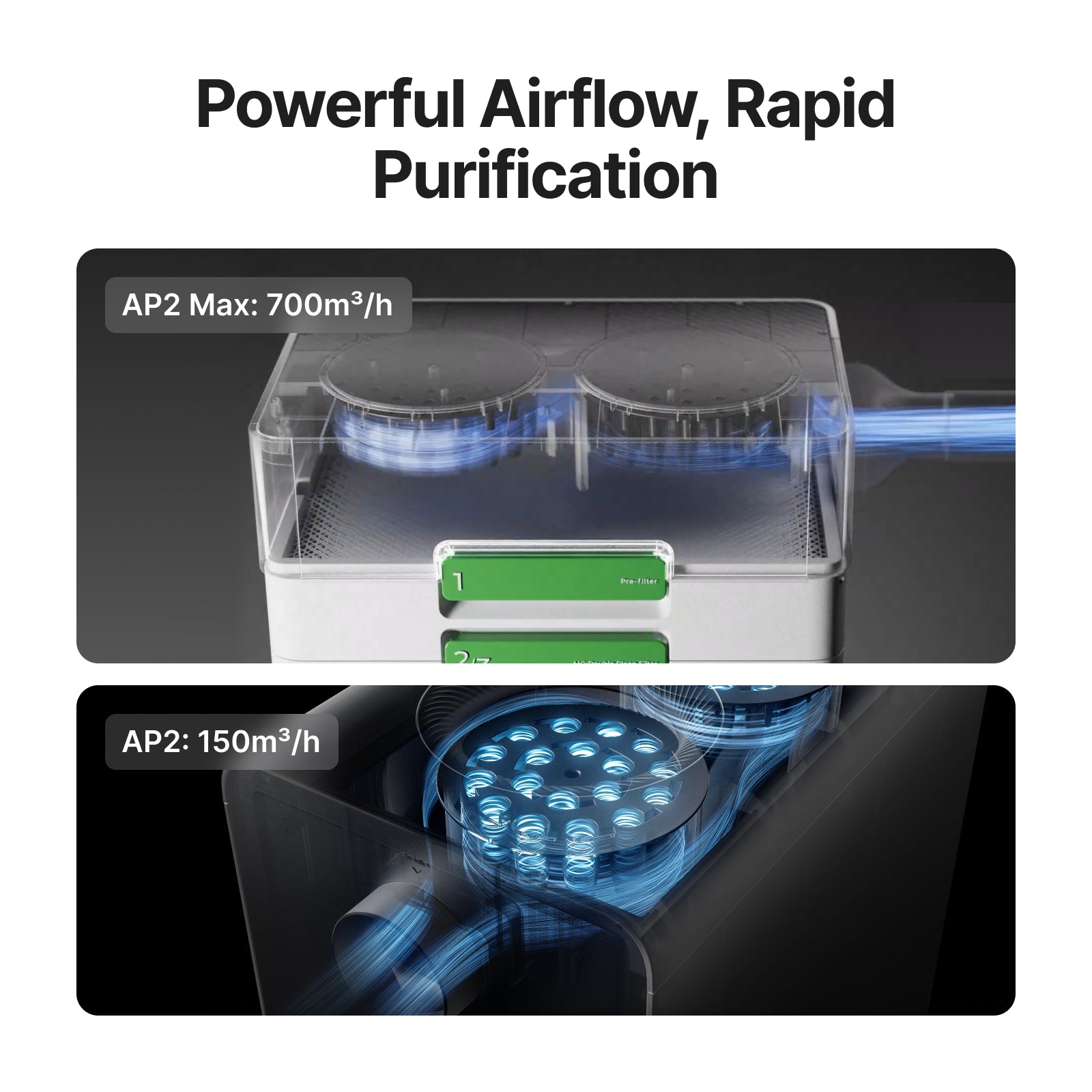

Powerful Airflow, Rapid Purification
The AP2’s 150 m³/h airflow efficiently purifies desktop tasks. The AP2 Max unleashes a dominating 700 m³/h, engineered for thick, large-format industrial laser and welding jobs.
Breathe Fresh Air Even in Laser Cutting
Breathe Fresh Air Even in Laser Cutting
Breathe Fresh Air Even in Laser Cutting
Breathe Fresh Air Even in Laser Cutting
Medical-Grade Protection
Ultra-Dense Mesh, Stronger Absorption
Ultra-Dense Mesh, Stronger Absorption
Medical-Grade Protection
Ultra-Dense Mesh, Stronger Absorption
Ultra-Dense Mesh, Stronger Absorption
AP2 Max Exclusive
Decomposing Formaldehyde for a Deeper Clean
Decomposing Formaldehyde for a Deeper Clean
AP2 Max Exclusive
Decomposing Formaldehyde for a Deeper Clean
Decomposing Formaldehyde for a Deeper Clean
VOC Removal Tested with PID Sensor Equipment
VOC Removal Tested with PID Sensor Equipment
VOC Removal Tested with PID Sensor Equipment
VOC Removal Tested with PID Sensor Equipment
Intelligent Control
Beyond Convenience, Smarter Than You Think
Beyond Convenience, Smarter Than You Think
Auto-On/Off, Sync with xTool Lasers
The purifier automatically starts and shuts down with the xTool lasers. You can also customize the shutdown time to ensure all fumes are expelled.
Tailored Setting for Every Material
The purifier automatically matches the optimal filtration mode based on the material selected by the user.
Filter Life Cycle Monitoring
The system monitors filter usage in real-time, preventing premature replacements or missed change intervals, and optimizing cartridge efficiency.
Intelligent Control
Beyond Convenience, Smarter Than You Think
Beyond Convenience, Smarter Than You Think
Auto-On/Off, Sync with xTool Lasers
The purifier automatically starts and shuts down with the xTool lasers. You can also customize the shutdown time to ensure all fumes are expelled.
Tailored Setting for Every Material
The purifier automatically matches the optimal filtration mode based on the material selected by the user.
Filter Life Cycle Monitoring
The system monitors filter usage in real-time, preventing premature replacements or missed change intervals, and optimizing cartridge efficiency.
Well-Designed for A Better Experience
Well-Designed for A Better Experience
Upgraded Motor, Super Suction
High-torque centrifugal motor, bringing greater fan output power, rapid exhaust of polluted gases.
Easy to Change Filter Cartridge
Pull-out Magnetic Door Design, no need to dismantle the machine. Simply pull to open, making it easy to remove, wash, and replace the filter.
Low-dB Operation, Non-Disruptive
PP adjustable hard tube has good flexibility and plasticity, can be bent and adjusted according to the actual needs, to adapt to different installation environments.
Well-Designed for A Better Experience
Well-Designed for A Better Experience
Upgraded Motor, Super Suction
High-torque centrifugal motor, bringing greater fan output power, rapid exhaust of polluted gases.
Easy to Change Filter Cartridge
Pull-out Magnetic Door Design, no need to dismantle the machine. Simply pull to open, making it easy to remove, wash, and replace the filter.
Low-dB Operation, Non-Disruptive
PP adjustable hard tube has good flexibility and plasticity, can be bent and adjusted according to the actual needs, to adapt to different installation environments.
The Safer Way to Create
The Safer Way to Create
The Safer Way to Create
The Safer Way to Create
FAQ
Yes, it is suitable if your machine's fume extraction requirement is 700 m³/h or less and its exhaust port diameter is within 60-110mm or 200-250mm. However, the smart features will not function.
The AP2 is designed for machines with a smoke extraction capacity of 150m³/h or lower. If your machine falls within this range, it should work with the AP2. However, you will need to prepare the adapter for the exhaust port yourself.
The product supports a 3-inch exhaust pipe. It's compatible with laser machines, hybrid 3D printers with laser modules, and DTF, 3D printers, as long as their exhaust pipe matches this size.
The AP2 is designed for machines with a fume extraction of 150 m³/h or less, but the P3’s fume extraction is 238 m³/h. The AP2’s airflow cannot meet this demand. As a result, if you connect a P3 to an AP2 for cutting, there will still be significant smoke and odor.
Yes, exhaust air can be discharged directly into the room because our purified exhaust air meets the air quality requirements for direct indoor exhaust.
It’s recommended to clean it every 6 months, but users can adjust this based on actual usage conditions.
